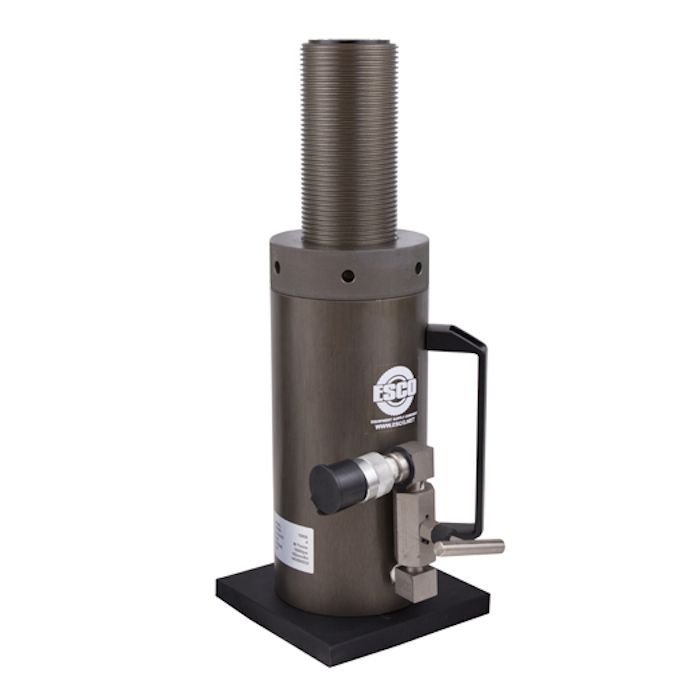

ESCO 50-Ton Safety Locking Collar Jack
$765.99
30 in stock
Free Shipping
4-7 business days, all US orders
30 Days Return
Consumer protection program
24/7 Support
If you have any questions
Secure Payment
100% protected checkout
30 in stock
How to Use Afterpay at Checkout
Shop now and pay over time with Afterpay. Eligible purchases can be split into 4 interest-free payments. Simply select Afterpay at checkout and follow the instructions to complete your purchase.
Learn How Afterpay Works →Description
The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While in most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand.
Features
- Designed For Use In Multiple Heavy Lifting Applications Including OTR/Mining Vehicle Lifting
- High Tonnage: 50-Ton Lifting Capacity
- Heavy Duty Aluminum Design At A Fraction Of The Weight
- Lightweight And Compact Design Makes Unit Highly Portable

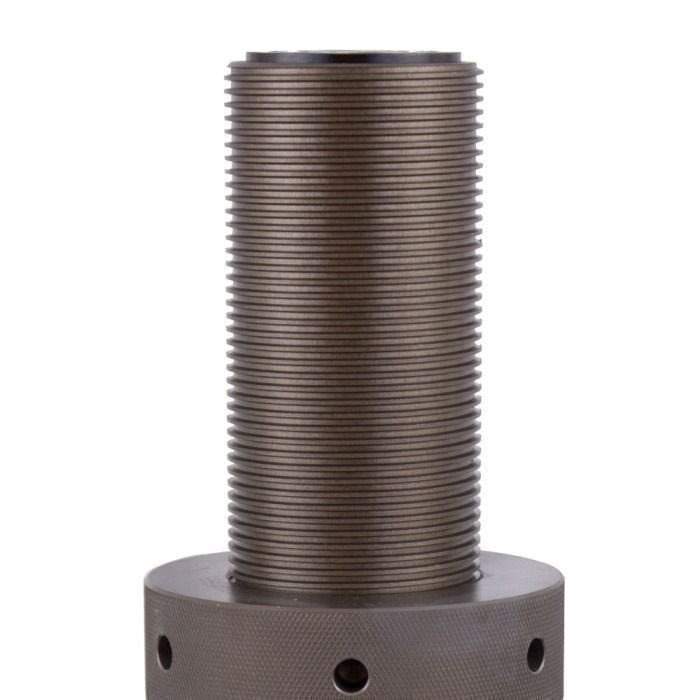

- Safety Lock Nut For Mechanical Load Holding
- 6″ (152mm) Stroke
Specifications
- Lifting Capacity: 50-Tons
- Stroke: 6″ (152mm)
- Max Pressure: 10,000 PSI
- Min. Height: 12.50″ (317mm)
- Max. Height: 18.60″ (472mm)
- Cylinder Effective Area: 10.99″ (in²)
- Oil Capacity: 67.07″ (in³)
- Cylinder Width: 5.27″ (133mm)
- Piston Rod Diameter: Tr80 x 4mm
- Nut Thickness: 1.57″ (40mm)
- Base Plate: 7″ x 7″ (178 x 178mm)
- Weight: 26.4 lbs. (12 kg)
- Warranty: (3) Years Limited*
